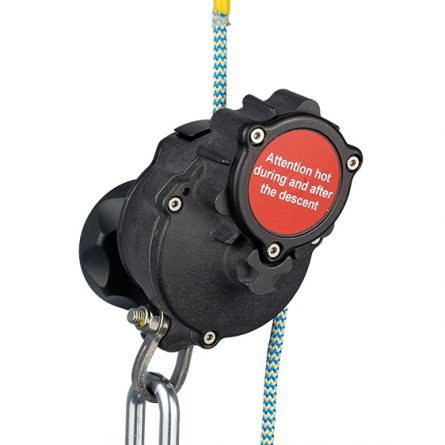

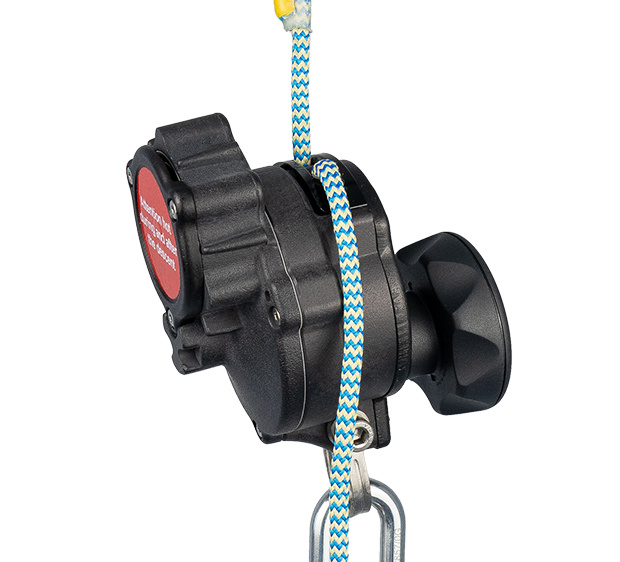

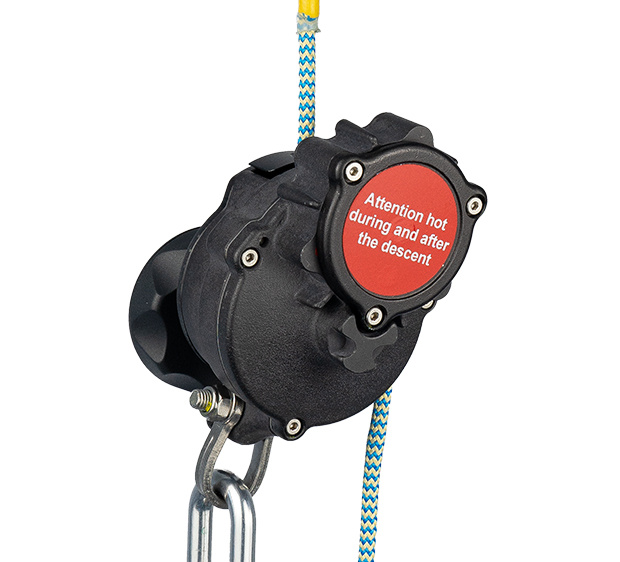

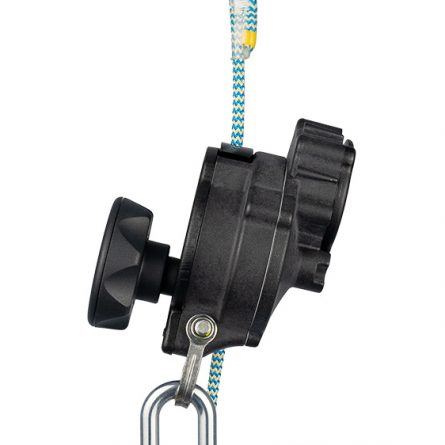

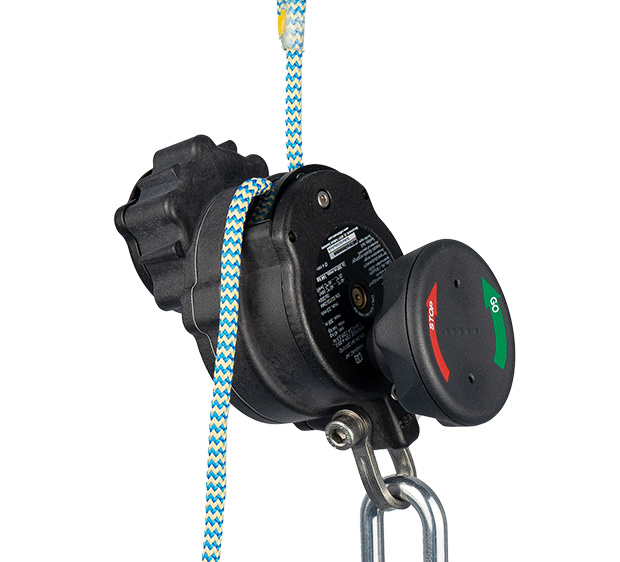

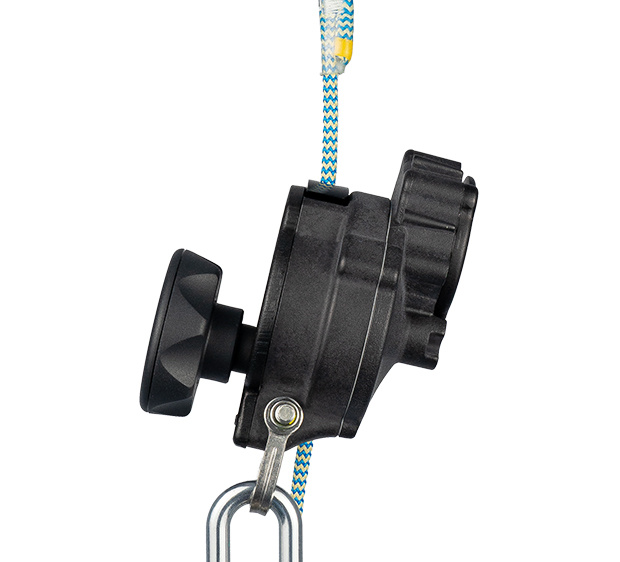

miniEVAC

The miniEVAC is our super-light, extremely compact and easy-to-use evacuation device.

To realise these superlatives in terms of weight and pack size, the miniEVAC uses 6 mm rope.

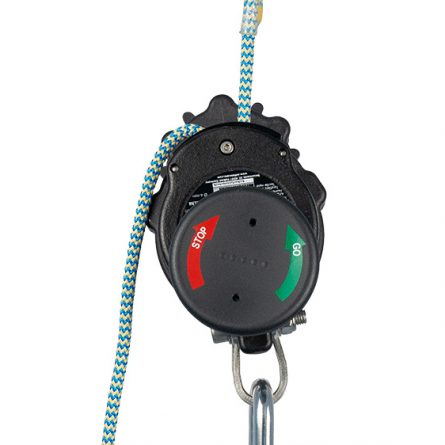

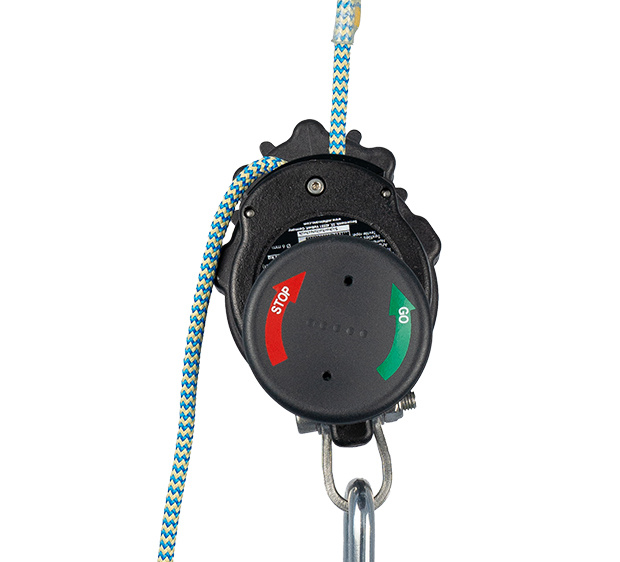

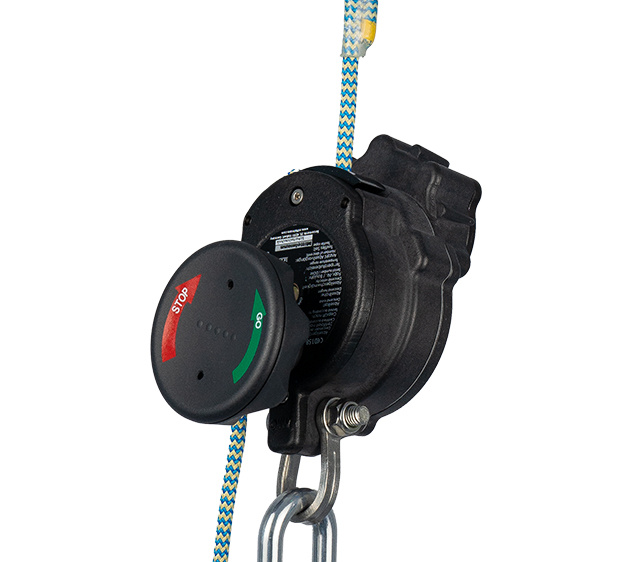

It also has a stop handle that can be used to stop and restart the otherwise automatic descent at any time.

In the event of a fall of up to 2m with 100kg into the blocked device, the forces occurring are limited to a maximum of 6kN.

Features

• Stop & go function The descent can be paused and resumed for maximum control
• Integrated shock absorber Limits the forces to less than 6 kN for a 2 metre fall with a load of up to 100 kg
• Efficient training Enables 30 descents of 10 metres with 144 kg before the rope needs to be replaced

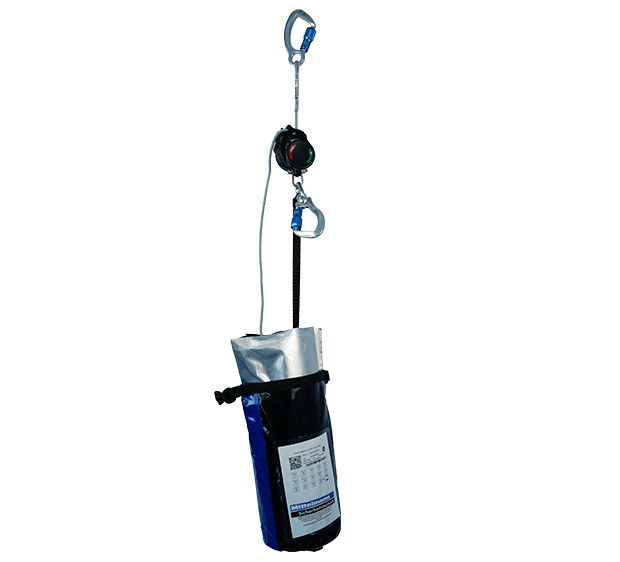

• 15 years maintenance-free Maintenance-free for up to 15 years thanks to vacuum packaging
• Descend several people at the same time without tangling The rope remains in the packaging and descends with the person

Standards

• DIN EN 341:2011/1D
• ANSI/ASSE Z359.4-2013
• CSA Z259.2.3-16

Details

• persons: 1
• rope ⌀: 6 mm
• descend speed: Ø 1 m/s
• max. descend height:  300 m
• max. nominal descent load:  144 kg
• weight:  1.8 kg
• temperature range: -20 °C up to +60 °C
• dimensions H x L x W: 325 x 120 x 95 mm

HS-code

• 84253900

ID-number

• EUR   181300
• INT   181400
